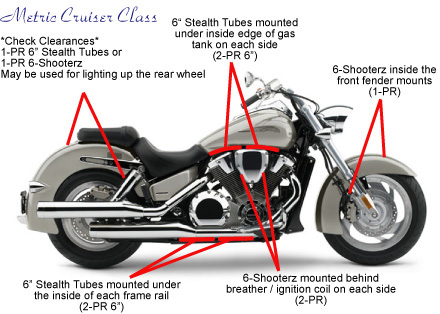

Go MILD to WILD, or anywhere in between! Rumbling Pride’s Arsenal LED Lighting is a complete plug-n-play system that allows product additions at anytime…it is just a modular connection away. The diagram below is designed to assist in determining the best placement of our products to get the desired result.
Please note: Exact set up may vary from bike to bike, if you have any questions please email or call us for a personalized consultation.
Standard Engine Kit
This kit is designed to light up the engine compartment only and
requires the use of two pairs of Stealth 6” tubes for installation
under the gas tank, (one pair on each side). Plus, two pairs of
6-Shooterz, one pair hidden on each side lower in the engine compartment.
Kit includes:
Freedom III Series Controller
2 pr. 6" Stealth Super-Flex Tubes
2 pr. 6-Shooterz
2-12" & 2-24" Plug-n-Play Interconnect Cables
Connector Sealing Tape
In-line Fuse
Remote Control
|
Wheel accents, ground effects and additional 6"tubes can be added during the ordering process! |
Premium Engine Kit
This kit is designed to not only light up the engine compartment,
but expand light to under the seat area of the bike. This installation
requires use of two pairs of Stealth 6” tubes for installation
under the gas tank, (one pair on each side), an additional pair
of 6” tubes installed in the under the seat area. Plus, two
pairs of 6-Shooterz, one pair hidden on each side lower in the engine
compartment.
Kit includes:
Freedom III Series Controller
3 pr. 6" Stealth Super-Flex Tubes
2 pr. 6-Shooterz
2-12" & 2-24" Plug-n-Play Interconnect Cables
Connector Sealing Tape
In-line Fuse
Remote Control
|
Wheel accents and ground effects can be added during the ordering process!
|
|
